Desktop Smart Card Personalization Machine PTH-1502

Desktop Smart Card Personalization Machine PTH-1502

Presentation:

Advantage:

Application:

Brochure Download:Down

OVERVIEW
This device is used for the Pre-personalization and Personalization of contact/contactless Cards such as: Public Transportation Cards, Social Security Cards etc...

Failed Cards could be re-personalized during production. PTH-1502 works on high speed, high-accuracy, and high stability. Customization and secondary development, are also supported.

FEATURES
• PTH-1502 series are mainly used for contact/contactless card pre-personalization, personalization and laser marking, such as SIM Card, Healthcare Insurance Card, Public Parking Payment Card, Loyalty & Membership Card etc.

• The failed cards can be re-personalized on-line during production.

• Both contact and contactless personalization can be realized without any adjustment of mechanical parts.

• PTH-1502 series are able to work with high speed, high precision, and high stability.

• Customization and secondary development are supported.

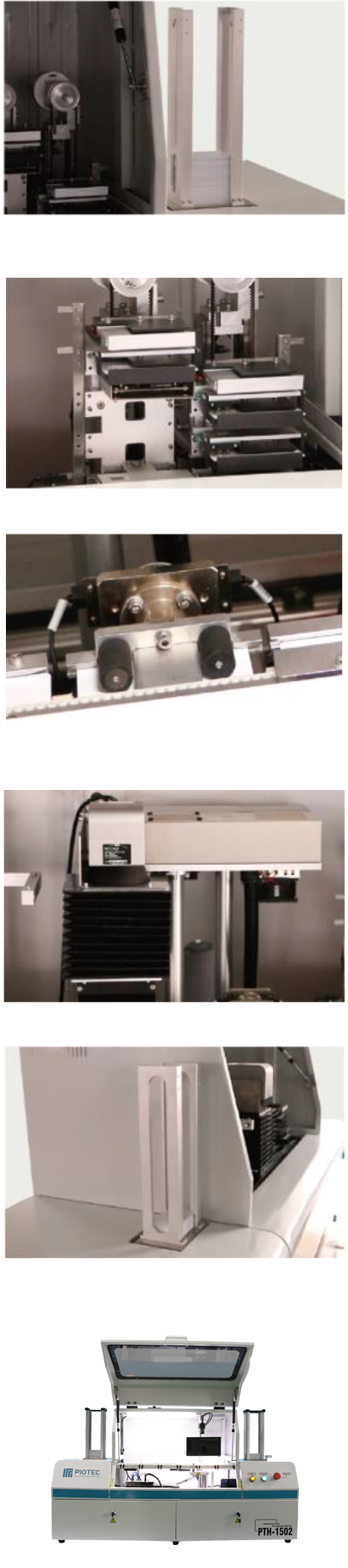

CONFIGURATIONS

• Input Module
There is one removable input magazine, and the Max. Capacity is 300pcs, which can be customized.

• Contact/Contactless Chip Encoding Module
Equipped with two lift-towers. One has 4 contact perso stations, and the other has 2 contactless perso stations. The two towers can work at the same time or disabled any one.

• Flipping Module
It decides which side to be printed on.

• Laser Module
Equipped with 12-watt air-cooled laser, and graphical personalization can be realized accordingly with marking accuracy of ± 0.2mm.

• Output Module
There is one removable output magazine, and the Max. Capacity is 300pcs, which can be customized.

• Optional Module
OCR Module: Check the accuracy of laser marking contents or read the surface information of card before personalization.
Contact Personalization Module: Both towers are configured with 8 contact readers in total for contact personalization.
Contactless Personalization Module: Both towers are configured with 4 contactless readers in total for contactless personalization.

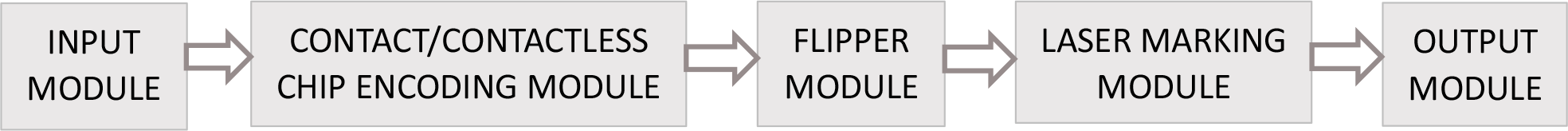

WORKFLOW SYSTEM

APPLIED FIELD
• Healthcare Institution
• Smart Card Manufacturers
• Transportation Card Center
• Loyalty Card Issuing Center

EXTENSION TYPE
• Healthcare
(Healthcare Insurance Card, Healthcare Employee ID card, etc.)

• Transit
(Public Transportation Card, Parking Card, Gas Card, etc.)

• Loyalty & Membership
(Loyalty card, Membership Card, etc.)

SPECIFICATIONS

Power Supply	• 20V(-5% ~ +10%), 50Hz, 600W
Operation Temperature	• +12 °C ~ +38 °C
Operating System	• Windows 7
Max. Throughout	• 2500cph
Cards Supported	• ISO7816, ISO14443
Encoding Failure Rate	• Less than 0.1%
Malfunction Rate	• Downtime is less than 1hour within 100hours’ continuous Production
Power Type	• Motor-driven, Air-driven
Continuous Running Time	• 7x24 hours
Automatically Reverso Function	• Support
Hierarchical User Management	• Support
Secondary Development	• Support
Overall Dimensions	• 890mm(L) x 450mm(W) x 750mm(H)
Accessories	• Basic Spare Parts, Driver Installation Package，Electrical Drawings， Operation Instructions, Maintenance Instructions, Software Guidebook
