Card Personalization Machine

High Speed Smart Card Personalization Machine PTA-8500B

Presentation:To make encoding, detection and laser engraving for SIM card

Advantage:High speed, high accuracy and stability. Outstanding market share

Application:SIM/GSM Card manufacturer

Brochure Download:Down

OVERVIEW
PTA-8500B personalization machine is undoubtedly the best choice of global smart card manufacturers by virtue of its excellent stability, strong expansibility and high speed laser-marking technology. Unique patented laser marking technology realizes non-stop laser marking so as to improve efficiency to the maximum extent. Max. throughput of PTA-8500B is up to 6000cph.Automatic card loading/unloading, card contact/contactless encoding，double-sided laser engraving and card re-perso online functions are integrated to realize sequential card output without human intervention.

CONFIGURATIONS
• Short-circuit punching
Input/Output Module

• Contact IC Perso Module

Equipped with 32 contact IC perso stations for standard, which can be extended to 64 stations to encode ISO card, 2in1 card and 4in1 card.

• Flipper Module
3 sets, 2 of them are used for card double sides marking and another for card output orientation selection.

• Laser Marking Module

Equipped with 2 sets of 50W fiber lasers and combined with RSID's unique patented technology for high speed laser marking, card is automatically positioned and laser engraves non-stop so as to realize real double laser engraving.

• Contactless IC Perso Module(Optional):

Equipped with 16 contactless IC Perso stations and RSID's industrial-class contactless reader.

•  OCR Checking Module(Optional):
Equipped with 1 OCR checking module for standard to read and verify the information of card surface.

ADVANTAGES
•  The Highest Speed of Laser Marking in The World
It adopts global unique patented laser marking technology. The throughput is up to 6000cph when one laser is equipped with marking time not more than 0.6s for one side or two lasers are equipped with marking time not more than 1.2s for one side.

•  High Speed and Stable IC Personalization
32 encoding stations are equipped as standard configuration, which can be extended to 64 stations to meet the demand of big data size of chip production; Static perso stations and readers stay static during electrical perso process to ensure stable data transmission and encoding.

•  High-performance Reader
It is equipped with the top industrial-class reader developed by RSID, which can test open/short circuit with stability and high cost-effective.

•  High Data Security
Special double authentications are necessary for sensitive and crucial operation; Customers can carry out secondary development for data analysis and processing by reader SDK.

THROUGHPUT

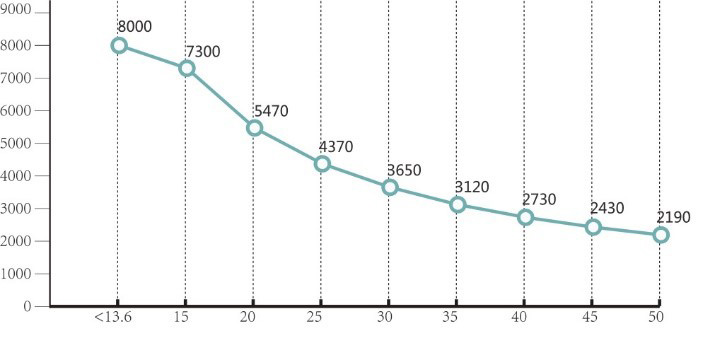

• THROUGHPUT-IC PERSONALIZATION
X-axis shows the personalization time in second
Y-axis shows throughput in cph.

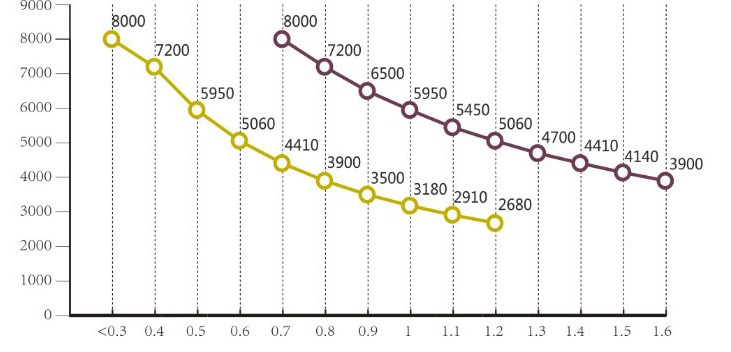

• THROUGHPUT-LASER MARKING
X-axis shows the personalization time in second
Y-axis shows throughput in cph.

Yellow line shows marking speed of single laser;
Purple line shows marking speed of two lasers for same graphical personalization.

SPECIFICATIONS

Dimension	• 3600mm×910mm×1900mm
Weight	• 800kg
Power Supply	• 220V (-5%~+10%), 50Hz, 6KW
Noise	• < 65 dB
Operation Temperature	• 23℃±3℃
Operation Humidity	• 50±10%
Compressed Air	• Pressure: 0.5MPa Flow: 400L/min
Communication Interface	• Ethernet
Maximum Throughput	• 6000 cph

•  The Highest Speed of Laser Marking in The World
It adopts global unique patented laser marking technology. The throughput is up to 6000cph when one laser is equipped with marking time not more than 0.6s for one side or two lasers are equipped with marking time not more than 1.2s for one side.

•  High Speed and Stable IC Personalization
32 encoding stations are equipped as standard configuration, which can be extended to 64 stations to meet the demand of big data size of chip production; Static perso stations and readers stay static during electrical perso process to ensure stable data transmission and encoding.

•  High-performance Reader
It is equipped with the top industrial-class reader developed by RSID, which can test open/short circuit with stability and high cost-effective.

•  High Data Security
Special double authentications are necessary for sensitive and crucial operation; Customers can carry out secondary development for data analysis and processing by reader SDK.

Dimension	• 3600mm×910mm×1900mm
Weight	• 800kg
Power Supply	• 220V (-5%~+10%), 50Hz, 6KW
Noise	• < 65 dB
Operation Temperature	• 23℃±3℃
Operation Humidity	• 50±10%
Compressed Air	• Pressure: 0.5MPa Flow: 400L/min
Communication Interface	• Ethernet
Maximum Throughput	• 6000 cph
